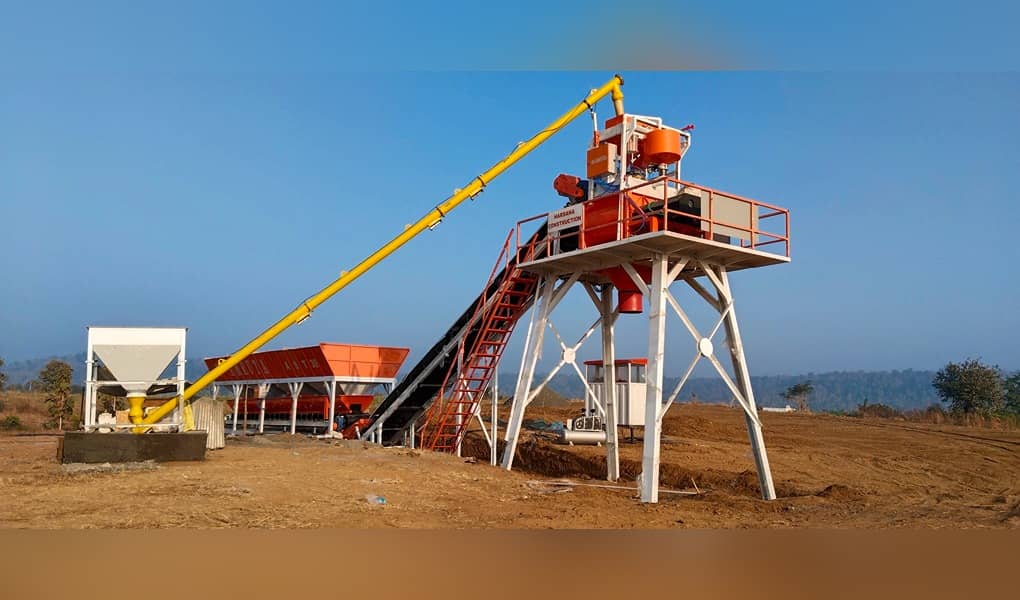

Salient Features of Stationary Batching Plant
Minimum aggregate loading height.
Robust structure with Inline 4 bins.
Large mixer platform for ease of maintenance.
Added safety with Limit Switch in Mixer.
Drive through design for increased productivity.
Chevron Belt arrangement option for mixer loading.
Modular design providing flexibility to adopt to different layout requirements.
Designed for ready-mix producers, contractors, Wind Mill Foundation, Concrete Road work and Dam Work.
For Mixing material Turbo Pan mixer / Twin Shaft Mixer.
Available in various capacities 30 to 120 Cum/Hour of compacted concrete output.
High precision load cells independent electronic weighing of cement, aggregates & water digital display.
PLC based control system with real-time SCADA for control and data management.
| Sr. No. | Details | AST 30 | AST 45 | AST 60 | AST 75 | AST 90 | AST 120 |
|---|---|---|---|---|---|---|---|
| 1 | Concrete Theoretical Output/hr. | 30 Cum | 45 Cum | 60 Cum | 75 Cum | 90 Cum | 120 Cum |
| 2 | Mixer Unit | Twin Shaft Mixer / Turbo Type Pan Mixer | |||||
| 3 | Aggregate Storage Bins | 4 nos. Inline Bins | |||||
| 4 | Aggregate Storage Capacity | 8 Cum / each | 8 Cum / each | 10.5 Cum / each | 10.5 Cum / each | 16 Cum / each | 16 Cum / each |
| 5 | Aggregate Conveyor Load Cell | 4 nos S type | 4 nos S type | 6 nos S type | 6 nos S type | 6 nos S type | 6 nos S type |
| 6 | Charging Conveyor | Chevron Type Belt | |||||
| 7 | Mixer Unit M3 | 0.5 M13 | 0.75 M3 | 1 M13 | 1.25 M3 | 1.5 M13 | 2.0 M13 |
| 8 | Cement Weighing Load Cell | 3 nos S type | 3 nos S type | 4 nos Beam type | 4 nos Beam type | 4 nos Beam type | 4 nos Beam type |
| 9 | Sand & Cement Vibrator | Provided Vibrator Motor | |||||
| 10 | Water Weighing Load Cell | 1 nos S type | 1 nos S type | 3 nos Beam type | 3 nos Beam type | 3 nos Beam type | 3 nos Beam type |
| 1 1 | Admixer Weighing System | Digital Loadcell Based Auto Admixture Dozing System | |||||
| 12 | Cement Screw Conveyor | Dia 168 | Dia 219 | Dia 219 | Dia 219 | Dia 273 | Dia 273 |
| 13 | Air Compressor | 3 HP | 5 HP | 7.5 HP | 7.5 HP | 10 HP | 10 HP |
| 14 | Control System | Fully Automatic PLC Based Control Panel | |||||
| 15 | Total Connected power | 47 KW | 62 KW | 104 KW | 121 KW | 193 KW | 280 KW |
| 16 | Suggested DG. | 85 KVA | 100 KVA | 160 KVA | 200 KVA | 250 KVA | 400 KVA |
