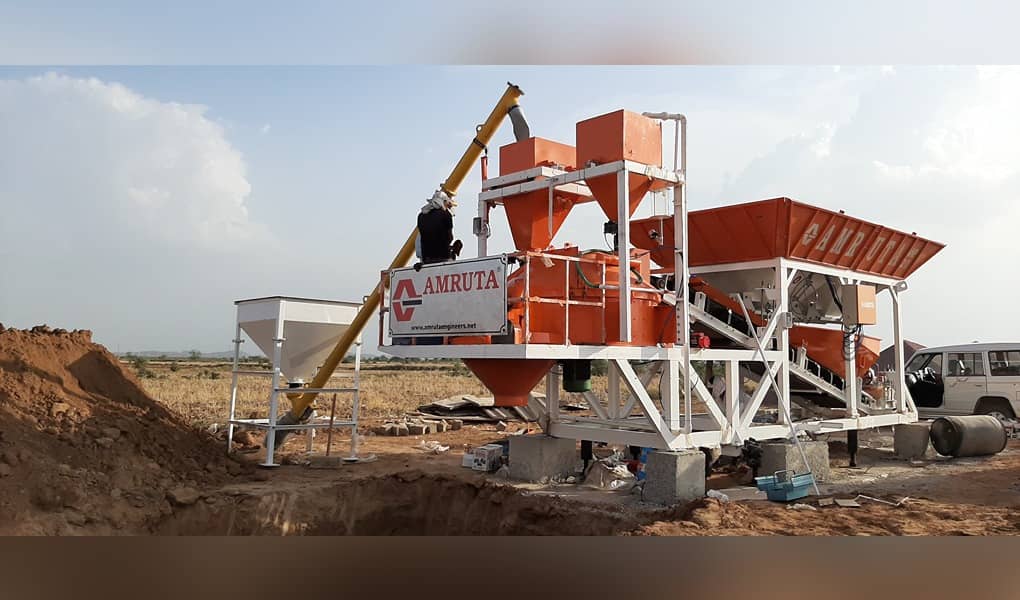

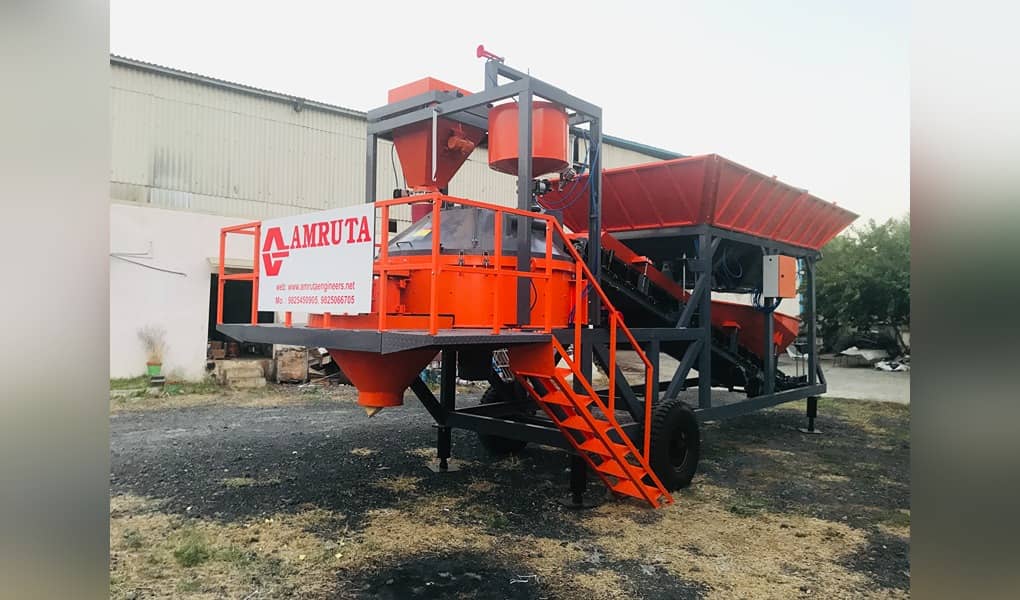

Introduction to Nano Mobile Batching Plant
Mini Batching Plant available with Reversible Drum type and Nano Type Pan Mixer.
Can handle up to 40 mm down aggregate size.
Mixing through 0.5 Cum Drum Mixer output with mixing time of 90 seconds.
Mixing through 0.33 Cum Pan Mixer out put with mixing time of60 seconds.
Reversible Drum forward direction material mixing and in reverse discharge.
Hydraulic Cylinder with power pack for discharge concrete in Pan Mixer.
Fully automatic Control Panel with HMI.
Tractor can be toeing with two tyre in Batching Plant.
Very low budget Batching Plant and move easilyto other site.
Inbuilt Auto Admixture & water dozing system.
Separate weighing for aggregate, Cement & fly ash with higher accuracy.
Size very compact easy maintenance and low running cost.
Single chassis type Concrete Batching Plant.
No need heavy ramp for dumping material.
| Sr. No. | Details | ARD 20 | ANP 20 | ||
|---|---|---|---|---|---|
| 1 | Concrete Theoretical Output/Hour | 15-18 Cum | 20 Cum | ||
| 2 | Aggregate Storage Bins | 2x2 Compartment | |||
| 3 | Aggregate Weighing | 4 nos S type Load Cell | |||
| 4 | Mixer Motor | 12.5 HP | 20 HP | ||
| 5 | Charging Conveyor | 600 mm Belt | |||
| 6 | Mixer Unit | Drum Mixer (0.5 M3) | Pan Mixer (0.33 M3) | ||
| 7 | Cement Weighing System | 3 nos Beam Type Load Cell | |||
| 8 | Water Weighing System | 2 No Beam Type Flow Based Feeding | |||
| 9 | Ad mixer Weighing System | Load Cell | |||
| Flow Based Feeding | 1 No S Type Load Cell | ||||
| 10 | Mixer Gate | Reverse Rotation | Hydraulic Cylinder with | ||
| 1 1 | Cement Filling Hopper | Discharge | 2 HP Power Pack | ||
| 27 Bag | |||||
| 12 | Cement Screw Conveyor | Dia 168 mm x 5 Mtr. | |||
| 13 | Tyre and Towing chassis | 2 nos Tyre | |||
| 14 | Air Compressor | 2 HP | |||
| 15 | Control System | Automatic PLC Based Control Panel | |||
| 16 | Discharge Height | 1.8 Mtn. | 800 mm | ||
| 17 | Connected Power | 23 KW | 31 KW | ||
| 18 | Suggested DG. | 40 KVA | 62.5 KVA | ||
