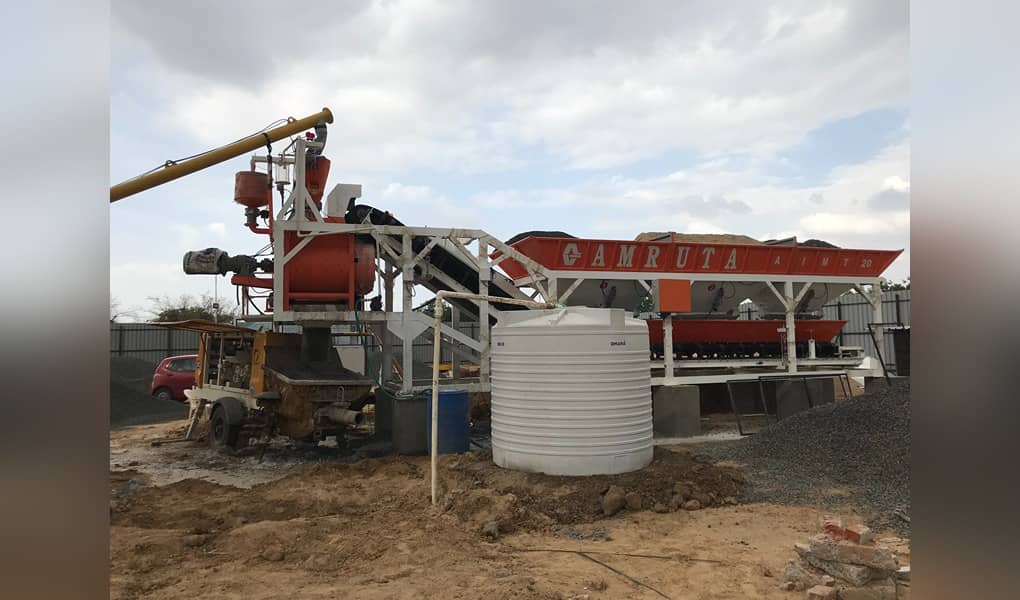

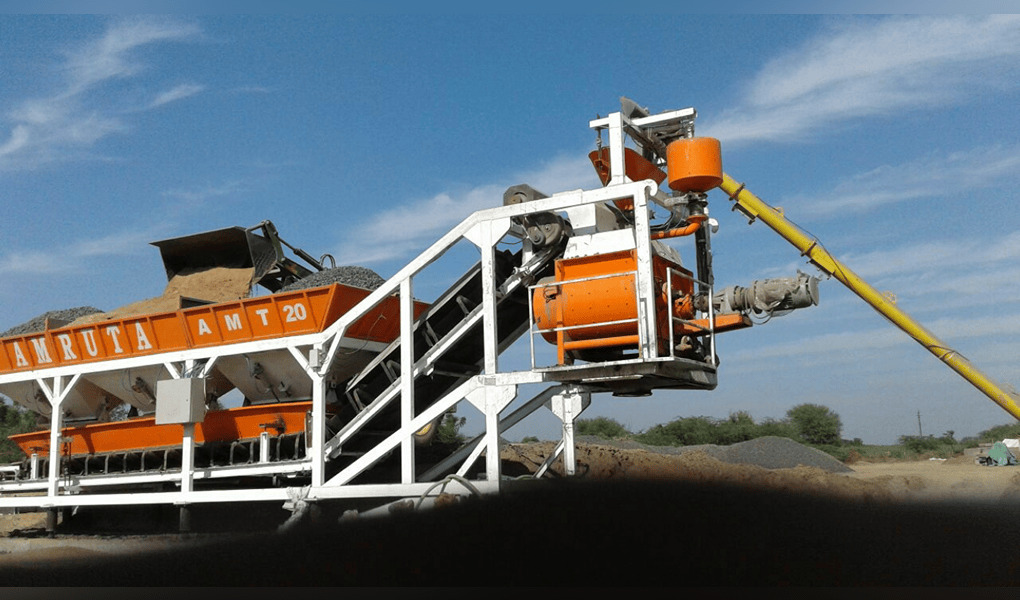

Salient Features of Inline Mobile Batching Plant
Compact size for easy Movability & Maintenance.
Robust structure with bins.
Quick start-up as everything comes with fully assembled from factory.
Accuracy & mix quality like Stationary Batching Plant.
No pit required for pump application.
Fully Automatic & PLC controlled plant with Twin Shaft Technology.
Inline feeder so not required Ramp to load material.
Very useful for Precast Industries.
Twin Shaft Mixer for better quality of concrete mixing.
Long life of Mixer due to body tiles in Hi chrome material.
| Sr. No. | Details | AIMT 20 | AIMT 25 |
|---|---|---|---|
| 1 | Mixer type | Twin Shaft Mixer | |
| 2 | Batch Capacity | 0.33 Cum | 0.40 Cum |
| 3 | Batch cycle time | 60 sec. | |
| 4 | Cement Screw Conveyor | Dia 168mm | |
| 5 | Prime mover for mixer | 20 HP Electric Motor | 25 HP Electric Motor |
| 6 | Plant Assembly | on heavy duty single chasis | |
| 7 | Belt Conveyor | Chevron type | |
| 8 | Concrete Discharge Height | 1.3 Meter From the Ground Level | |
| 9 | Gate Operating System for Feeder | Pneumatic Control System | |
| 10 | Total Pneumatic cylinders | 3 Nos. Janatics Make | |
| 1 1 | Bin Hopper / Storage | 3 Nos. Inline Bin / Each Hopper Capacity 5 Cum | |
| 12 | Control Panel | HMI PLC Controlled Automatic | |
| 13 | Air Compressor | 3 HP- 180 Ltr. | |
| 14 | Belt Conveyor Motor | 10 HP | 12.5 HP |
| 15 | Aggregate / Cement / Water / Additive Weighing | Electro magnetic load cell | |
| 16 | Connected Load power/ Suggested DG | 32 KW / 85 KVA | 38 KW / 85 KVA |
