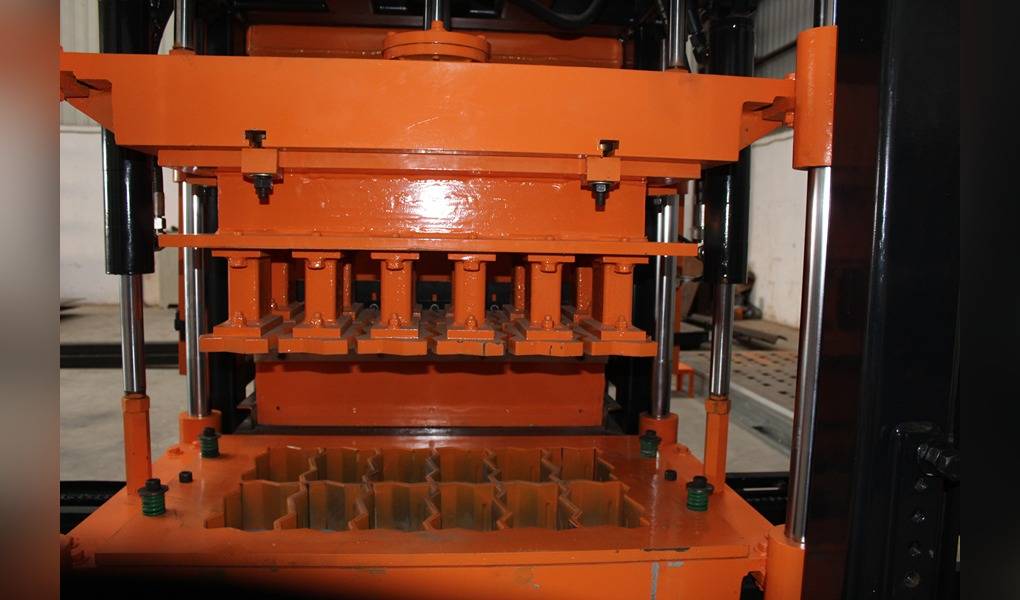

Introduction to Automatic Block Making Machine
- ABM-40 and ABM-60 are specially designed for Indian market for easy and rapid production of Blocks, Pavers, Kerbstone, Fly Ash bricks, Grass Bricks etc.
- It is ideal for 50 to 200mm heighted products.
- ABM-40 and ABM-60 vibration technology is specially designed to achieve a high frequency and controlled vibration. This vibration can be controlled through PLC for better performance. Motor used for vibration are controlled by drives.
- ABM-40 and ABM-60 are manufactured using high quality steel and anti wear property material for excellent performance.
- ABM-40 and ABM-60 are equipped with Adjustable frequency drive for adjusting the vibration for different block products.
- ABM-40 and ABM-60 are integrated with advanced hydraulic system with PLC for very accurate and highly effective performance.
- Best in Class Design.
- Special design to expedite mould change in very less time (Fast Mould Change)
- Easy Human Machine interface for easy operation and data inputs.
- Automatic Pallet feeder & Receiver.
| Height of Finished Products | 50-200 mm | Vibration Force | 50 KN |
|---|---|---|---|
| Cycle Time | 20-30 S (as per mould) | Motor Frequency | 50-60 HZ |
| Pallet Size | 850 x 540 mm | Overall Dimension (L x W x H) | 4500 x 3000 x 2500 mm |
| Production Area | 830 x 500 mm | Total Weight | 45T |
| Product | Size | Production / Mould | Production Cap / 8hr |
| Hollow Block | 400 x 200 x 200 mm | 4 | 3,000 - 3800 |
| Solid Block | 400 x 200 x 200 mm | 3 | 2,500 - 3000 |
| Rectangular Paver | 200 x 100 x 60 mm | 14 | 11,000 - 13,000 |
| Zig-Zag Paver | 225 x 112.5 x 60 mm | 12 | 10,000 - 11,000 |
| Sr.No. | MODEL | ABM-40 | ABM-60 |
|---|---|---|---|
| 1. | Height of Finish Product | 50 x 200mm | 50 x 200mm |
| 2. | Cycle Time | 20-30 Second | 20-30 Second |
| 3. | Pallet Size | 850 x 540mm | 900 x 700mm |
| PRODUCTION CAPACITY | |||||||
|---|---|---|---|---|---|---|---|
| Sr.No. | Product | Size | Production/Mould | Production/8 Hr. | Size | Production/Mould | Production/8 Hr. |
| 1. | Hollow Block | 400x200x200mm | 4 | 3,500-4,900 | 400x200x200mm | 6 | 6,500-7,000 |
| 2. | Solid Block | 400x200x200mm | 3 | 2,700-3,700 | 400x200x150mm | 8 | 8,500-9,500 |
| 3. | Rectangular Paver | 200x100x60mm | 14 | 15,000-17,000 | 200x100x60mm | 21 | 24,000-27,000 |
| 4. | Zig-Zag Paver | 225x112.5x60mm | 12 | 13,000-14,500 | 225x112.5x60mm | 15 | 17,500-18,500 |
